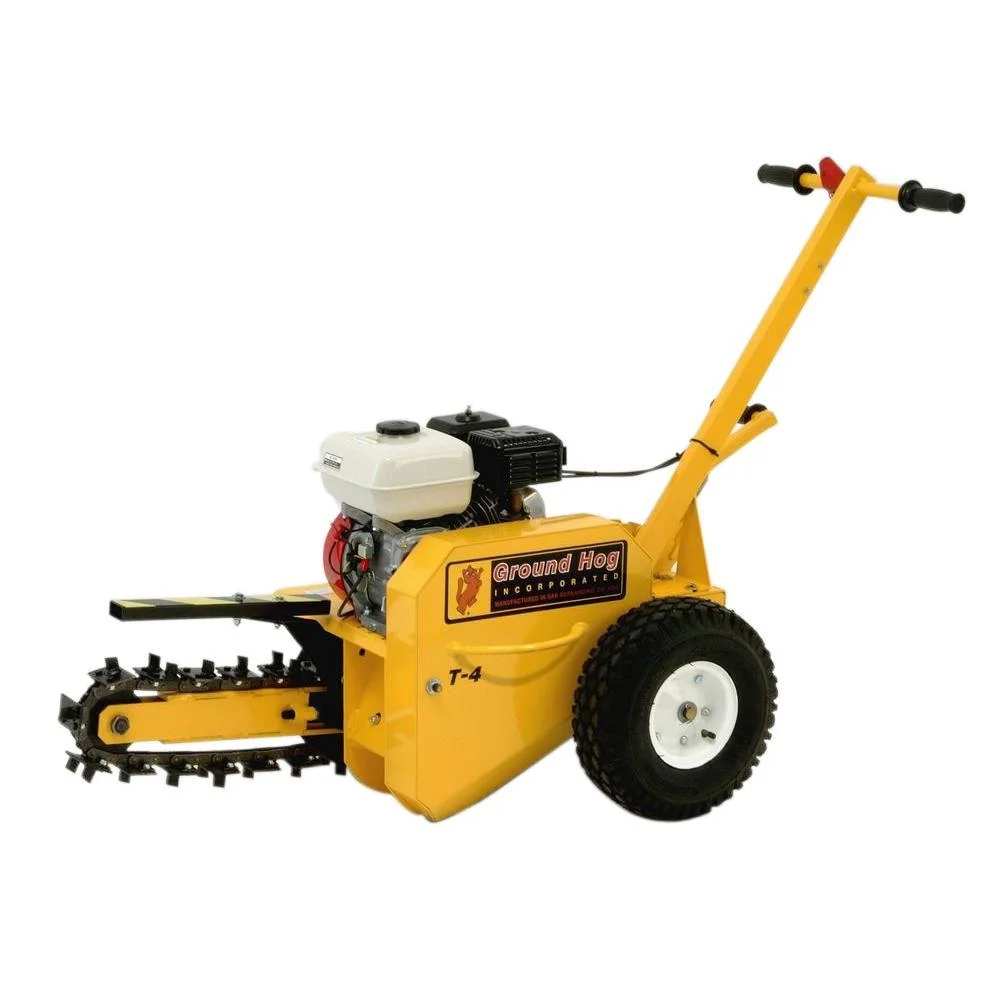

The Ground Hog T-4 Trencher is a small, operator propelled, chain-type trencher designed for jobs requiring up to a 12 or 18 inch deep trench. Heavy gauge powder coated steel is used throughout the T-4's construction as well as tapered roller bearings and double-row ball bearings to ensure trouble-free service. Over 60 years of experience in the Rental, Construction and Landscape industries has produced a design that is very durable and easy to maintain, which leads to a fast return on investment.
The T-4’s narrow, compact design allows easy access around the job site and it easily fits through gates and doorways. The T-4 is also easier to use and transport than larger trenchers. The simplified operator controls help make the machine less intimidating to operators unfamiliar with using outdoor power equipment.
The Ground Hog T-4 uses a unique ratchet mechanism on the wheels to help prevent the machine from pulling away from the trenching direction. This greatly aids the operator while trenching and allows the trencher to do the digging while the side delivery auger piles the dirt up neatly beside the trench. When the depth control handle is moved to one of the 3 digging positions the wheel ratchets engage allowing the wheels to only roll in the trenching direction.
The T-4 is available in several different configurations in regards to the maximum depth of the trench, the blade type and choice of engine. Two different maximum trench depths are available, one that has a maximum depth of 12 inches and one that will dig up to an 18 inch deep trench. Both models have 3 operator controlled depth settings and are essentially the same machine with the 18 inch model having a longer digging boom and chain. Both the 12 and 18 inch models are available with a choice of replaceable carbide-tipped Shark teeth or replaceable carbide-tipped Bullet-type teeth for digging in all types of soil conditions.
The Shark and Bullet teeth are both good general purpose blades, however they both have their strengths in different types of soil. The Shark blades have shorter teeth that penetrate the ground easier and are noticeably smoother while digging and also do better in soil that has small roots and other obstructions. Both types of blades will dig in rocky soil, but the Bullet chain has a taller profile that will handle baseball-size and larger rocks better. Both blade types dig a 3 inch wide trench and there is a 4 inch wide option available on the 12 inch models.
1/2 Day (4 Hours): $ 56
Day (8 Hours): $80
Weekly (5 Days): $240
